In prestressed concrete manufacturing, the mechanical bond between steel and concrete dictates long-term structural integrity. You rely on this critical bond to hold massive, dynamic loads securely in place. While plain PC wire serves basic pre-tensioning needs, highly dynamic load environments require enhanced anchorage. Plain wire often slips under intense cyclic stress. This slippage compromises overall safety and severely shortens the structural lifespan of concrete elements.
This guide outlines the technical criteria, compliance standards, and supplier evaluation frameworks necessary to source the correct materials. You will learn how to verify mechanical properties, ensure rigorous metallurgical quality, and implement strict control measures. We will show you exactly how to select the right wire for your specific production line. By following these guidelines, you can secure reliable materials without introducing unnecessary supply chain risk.
Mechanical Interlocking: Helical ribs significantly improve the concrete-to-wire bond, reducing transfer lengths in pre-tensioned elements compared to plain wire.
Chemical & Physical Baselines: Optimal selection requires matching carbon/manganese ratios with verified low-relaxation properties (typically ≤ 2.0% at 1000 hours).
Compliance is Non-Negotiable: Viable suppliers must provide verifiable Mill Test Certificates (MTCs) aligning with standards like ASTM A421, EN 10138-2, or BS 5896.
Total Cost of Ownership: Procurement decisions should weigh initial per-ton costs against rejection rates, spool consistency, and delivery reliability.
Standard plain wire often suffers from slippage in high-stress, pre-tensioned applications. Concrete naturally shrinks and creeps over time. When external forces assault the structure, plain wire relies entirely on friction to maintain its grip. If this friction fails, micro-cracking initiates around the wire. These invisible cracks allow moisture penetration, accelerating internal corrosion. Ultimately, this reduces the structural lifespan and increases liability.

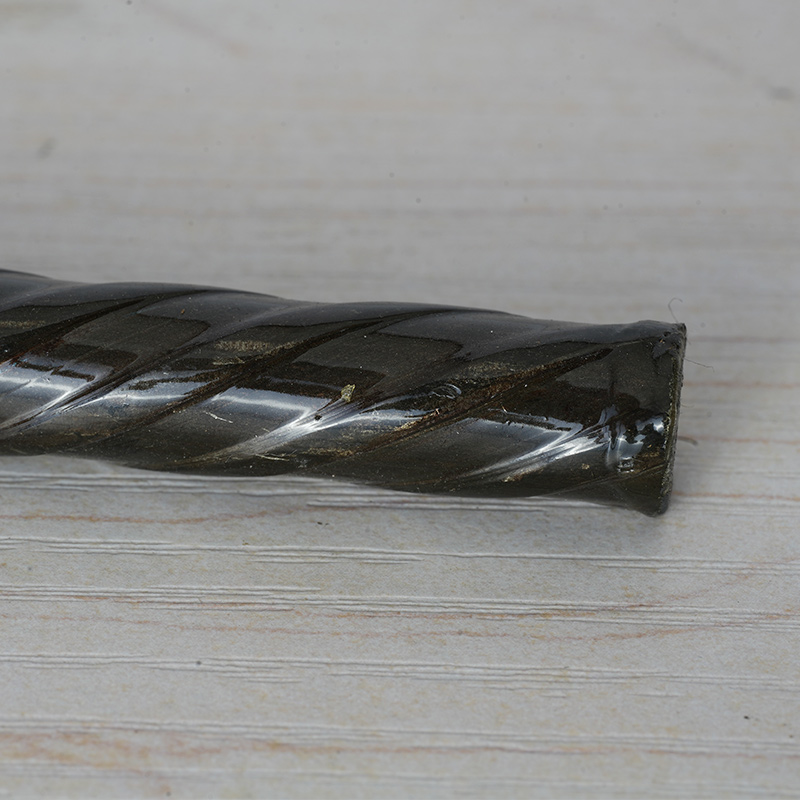

When you specify Helical Rib Steel Wire over standard plain wire, you gain a distinct mechanical advantage. Manufacturers engineer these wires to feature continuous helical grooves along their surface. During the concrete curing process, cement paste flows seamlessly into these grooves. Once cured, this creates a rigid mechanical lock. This interlocking maximizes stress transfer efficiency. It aggressively anchors the wire, ensuring tension remains uniformly distributed even under severe structural duress.
You must justify material specification based on end-use demands. High-vibration and heavy-load products benefit immensely from enhanced anchorage. Key applications include:
Railway sleepers (cross-ties): Passing trains generate intense, repetitive vibrations. Helical ribs prevent the wire from backing out of the sleeper under dynamic impact.
High-strength spun concrete piles: Pile driving creates massive shockwaves. Mechanical interlocking ensures the internal reinforcement survives the installation process intact.
Hollow-core floor slabs: These structural elements typically lack shear reinforcement. They rely completely on the bond strength of the prestressing steel to carry heavy live loads.
Engineers classify prestressing wire by its ultimate tensile strength. You must identify standard required strength grades to match your structural designs. Common international grades include 1470 MPa, 1570 MPa, 1670 MPa, and 1770 MPa. Higher tensile strengths allow you to use smaller diameters or fewer wires per concrete element.
Beyond raw strength, you must verify the yield-to-tensile strength ratio. This metric ensures predictable elastic behavior during the active stressing process. The wire must yield slightly before it reaches its breaking point. This yielding provides a crucial visual warning against overloading, preventing catastrophic, sudden snapping on the factory floor.
Steel under constant tension naturally elongates over decades. We call this phenomenon "relaxation." You must define the absolute necessity of Low Relaxation (LR) wire to prevent long-term prestress loss. Normal relaxation wire loses a significant portion of its tension over time, weakening the final concrete structure.
Low relaxation wire undergoes a specialized thermo-mechanical treatment called stabilization. This process permanently alters the crystalline structure of the steel. Your benchmark expectation should be strict: ≤ 2.0% relaxation after 1000 hours tested at 70% of the actual breaking load. Meeting this benchmark guarantees the concrete retains its designed compressive force.
Metallurgy dictates performance. You must evaluate the chemical makeup of the steel to ensure safe production. The wire requires high carbon content (typically 0.75-0.85%) to achieve its massive tensile strength. However, carbon alone makes steel brittle. Manufacturers balance this by adding Manganese and Silicon, restoring necessary ductility.
You must also assess strict limits on impurities. Sulfur and Phosphorus act as dangerous contaminants in steelmaking. High levels of these elements cause brittleness and delayed fracture. If a wire snaps during tensioning due to phosphorus contamination, it creates lethal safety hazards for your machine operators.
Table: Standard Chemical and Physical Baseline Guide
Parameter | Optimal Range / Limit | Primary Impact on Wire Performance |
|---|---|---|
Carbon (C) | 0.75% - 0.85% | Dictates ultimate tensile strength (MPa). |
Manganese (Mn) | 0.60% - 0.90% | Enhances toughness and workability. |
Sulfur (S) & Phosphorus (P) | < 0.025% (Each) | Prevents severe brittleness and snapping. |
Relaxation @ 1000 hours | ≤ 2.0% | Maintains long-term structural compression. |
Consistency drives manufacturing efficiency. You will typically select standard diameters such as 4.0mm, 5.0mm, 6.0mm, 7.0mm, or 9.0mm. However, the exact diameter matters less than its consistency. Variations in diameter cause uneven grip in the tensioning wedges, leading to slippage.
Furthermore, you must evaluate the consistency in rib pitch and depth. The helical grooves must remain perfectly uniform across the entire wire length. Shallow ribs fail to lock into the concrete. Overly deep ribs create stress concentrators in the steel, significantly lowering the breaking load. Precision in drawing dies is absolutely mandatory.
You cannot specify materials effectively without aligning them to stringent regional frameworks. Global engineering codes dictate specific performance baselines. Designing a product for North America requires strict adherence to ASTM A421 or A421M. If your products enter European markets, you must conform to EN 10138-2 or the British BS 5896 standard. For projects across Asia and international zones, focus on GB/T 5223, JIS G 3536, or ISO 6934-2. Selecting a supplier familiar with your target region’s specific code prevents project rejection by third-party inspectors.
You should never rely on assumptions regarding material integrity. Require hard evidence of in-house or third-party testing for every batch. Key mechanical evaluations include:
Tensile strength and elongation tests: Confirm the wire hits its required MPa grade and stretches appropriately before failure.
Torsion tests: Operators twist the wire repeatedly to ensure it does not split longitudinally.
Bend tests: The wire must bend around a specific radius without cracking, proving internal ductility.
Additionally, look for continuous inline non-destructive testing (NDT) during manufacturing. Advanced facilities utilize eddy current testing. This magnetic NDT method catches microscopic surface defects before the wire ever reaches the spooling station.
How a supplier spools the wire drastically impacts your daily operations. You need to evaluate the physical coil weights, which typically range from 800kg to 2500kg. Larger coils reduce the frequency of machine reloads, boosting your daily output. However, they demand heavy-duty forklifts and robust payout racks. You must match the coil size to your facility's physical handling limits.
More importantly, ensure proper "pay-off" characteristics. When your operators uncoil the wire, it must lay perfectly straight. Residual twisting or tangling causes catastrophic machine jams. Poor pay-off behavior indicates improper heat treatment during the stabilization phase. Wire flying unpredictably off a tangled spool also creates severe workplace injuries.
Steel inherently wants to return to rust. You must assess the supplier's packaging methods carefully, especially for ocean freight shipments. Industry-standard protection involves wrapping the coils in VCI (Volatile Corrosion Inhibitor) paper. This specialized paper releases a protective gas. They should follow this by applying thick PVC wrapping and inserting high-capacity moisture-absorbing desiccants.
You also need a clear protocol to address the risk of surface rust upon arrival. Light, superficial rust actually improves bonding by roughening the surface slightly. You can usually accept this. However, pitting corrosion is grounds for immediate rejection. Pits act as microscopic notches. When you tension the wire, stress concentrates at these pits, causing sudden, explosive wire failure.
Quality begins with absolute transparency. You must demand comprehensive Mill Test Certificates (MTCs) for every single heat number and production batch. An MTC serves as the legal birth certificate for the steel. It proves the chemical composition, yield strength, and relaxation metrics meet your required standards.
Furthermore, you should verify lot-to-lot consistency through historical data. Ask potential partners to provide MTCs from the last six months of production. Consistent data proves they run a stable operation, rather than occasionally getting lucky with a good batch.
Your supplier must act as a reliable partner during your busiest seasons. Ensure the manufacturer's drawing, patenting, and stabilizing lines can handle your peak production periods. Patenting involves heat-treating the wire rods to prepare them for drawing. Stabilizing involves heating the wire while under tension to achieve low relaxation. These two processes form the biggest bottlenecks in manufacturing. If they lack adequate furnace capacity, your lead times will stretch unacceptably.
Follow a structured, phased approach when qualifying new suppliers to mitigate risk:
Step 1: Document Review. Request a detailed technical data sheet (TDS) alongside a sample spool for in-house laboratory testing. Verify the chemistry and breaking load yourself.
Step 2: Operational Trial. Conduct a limited trial run on your factory floor. This verifies real-world pay-off behavior, wedge grip compatibility, and actual concrete bonding strength after curing.
Step 3: Quality Audit. Audit the supplier’s ISO 9001 certification. Investigate their historical claim resolution process to see how they handle inevitable logistical or quality disputes.
Selecting the right helical rib steel wire requires balancing strict mechanical properties with verifiable manufacturing consistency. You must look beyond simple breaking loads. You need to analyze the yield ratios, chemical purities, and handling characteristics to ensure safe, efficient daily production.
Do not compromise on low-relaxation properties or rib uniformity. These specific technical elements directly impact the long-term safety and viability of the final concrete structure. Overlooking them risks severe structural failures down the line.
Before making a final specification, consult with your structural engineering team to finalize the exact diameter and tensile requirements for your projects. Once aligned, request detailed MTCs and sample spools from your shortlisted suppliers to begin rigorous physical testing.
A: Indented wire has individual, discrete impressions stamped into the surface, while helical rib wire features a continuous raised or grooved spiral. Helical ribs generally provide superior torsional resistance and continuous mechanical interlocking.
A: It is primarily designed for pre-tensioning applications (like sleepers and slabs) where the wire bonds directly to the concrete. Post-tensioning typically utilizes multi-wire PC strands housed in protective ducts.
A: Steel under constant high tension naturally elongates over time, reducing the compressive force applied to the concrete. Low relaxation wire undergoes a specialized thermo-mechanical treatment (stabilization) to minimize this loss, ensuring the concrete retains its designed load-bearing capacity for decades.
A: If the carbon content is too high or impurities like sulfur aren't strictly controlled, the wire becomes brittle. This leads to snapped wires during the tensioning phase, halting production and creating severe safety hazards.
